Description

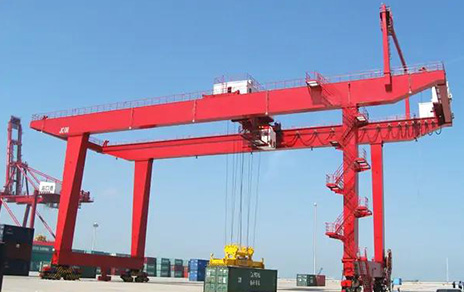

The rail mounted gantry crane is applicable to remove, load, and unload international standard containers. It is a highly efficient loading and unloading equipment, mainly for in ports, docks, and inland container yards. The main function is stacking, handling, and transshipment of containers from ships to land transport. The main beam is the core structure that bears the weight of the container. It is usually a box-shaped section to ensure strength. Its outriggers connect to both ends of the main beam. Thus, it could support the entire RMG crane and allow it to move along tracks on the ground.
Specifications
| Cpapcity of Spreader | Ton | 30.5 | 35 | 40.5 | 50 | ||
| Working Duty | A6 | A6 | A6 | A6 | |||
| Span(m) | Meter | 35 | 35 | 35 | 35 | ||
| Base(m) | Meter | 16 | 16 | 16 | 16 | ||
| Lifting Height (m) | Meter | 15.4 | 15.4 | 18.3 | 18.3 | ||
| Speed | Hoisting | With Full Load | m/min | 12 | 12 | 18 | 18 |
| Max. working Lcad of Wheel | 24 | 24 | 36 | 36 | |||
| Trolley Tavelling | 60 | 60 | 70 | 70 | |||
| Gantry Traveling | 45 | 45 | 45 | 45 | |||
| Total Power | kW | ~200 | ~230 | -255 | ~300 | ||
| Max. working load of Wheel | kN | 260 | 260 | 280 | 300 | ||
| Crane Rail | P50 | P50 | P50 | QU80 | |||
| Power Supply | 3-phase AC 50Hz 380V | ||||||
Advantages
When purchasing a marine travel lift for sale, it is recommended to conduct a professional evaluation in the following four areas:
Operational efficiency
The rail mounted gantry crane use electronic anti roll systems, some major foreign professional companies are developing fully automatic unmanned container anti roll positioning systems with positioning feedback devices to improve operational efficiency.
Large span
To accommodate container ships of different sizes, RMGs could cover multiple berths and even span multiple railway tracks.
Track type
Due to the use of track type, the rail type mounted gantry crane can withstand greater loads by increasing the number of wheels. Therefore, the span of the rail mounted container gantry crane increases.
Flexibility
In addition to basic vertical lifting and horizontal movements, some advanced RMGs can also perform rotational operations, further enhancing operational flexibility.
